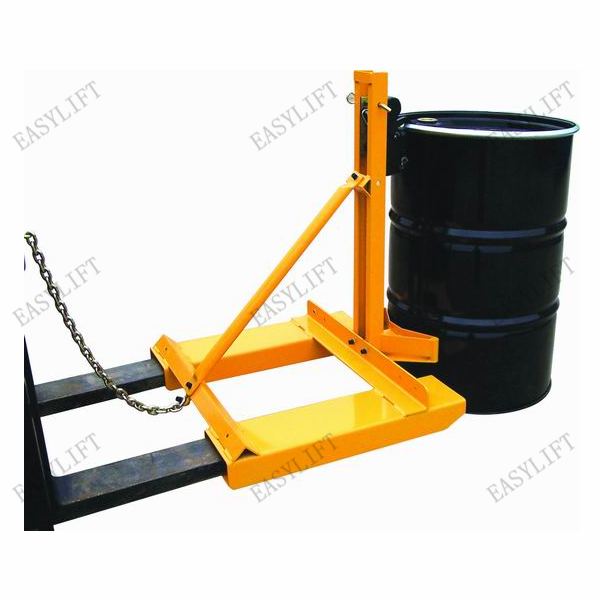

單桶桶夾

單桶輕型桶夾（型號：1SEJ-BO）

產品名稱(Description)：?jiǎn)瓮拜p型桶夾
產品型號(Model)：1SEJ-BO
鷹嘴類型(Eagle-Grip)：?jiǎn)晰椬霺EJ
產品自重(Weight)： 60 kg
鐵桶單重(Steel Drum)：250 kg
塑料桶單重(Plastic Drum)：150 kg
外形尺寸(Dimensions)(LxWxH)：760x790x955 mm
叉車噸位(Forklift)： 1-5T

在線咨詢

產品詳情

采用美國技術生產，技術領先

鷹嘴采用美國超強特殊材料制作，經久耐用

單鷹嘴鷹頭，適應各種直徑的圓桶(

有桶邊、直上直下型)

與標準3米升高叉車配合，可在地面上，對卡車進行2

層桶的堆碼

采用全自由門架叉車，在集裝箱等狹小環境內進行2

個桶高的堆碼(

普通叉車只能堆碼1

層桶)

桶夾操作要領：傾斜叉車門架，很重要?。?！

在抓桶之前，需要將叉車門架前傾，這是因?yàn)槿绻洸婧烷T(mén)架后傾，皮帶會首先與桶接觸而使鷹頭不能接觸到桶邊，不能完成抓桶動作。

在抓取桶以后，請將門架向后傾斜，使桶處于垂直狀態，然后開動叉車將桶安全地運送到需要的地方。

在釋放油桶時，也需要將門架適當前傾。

Main Features

：

Leading technology and patents from USA

Long life Eagle-Grip jaws made from USA special alloy material

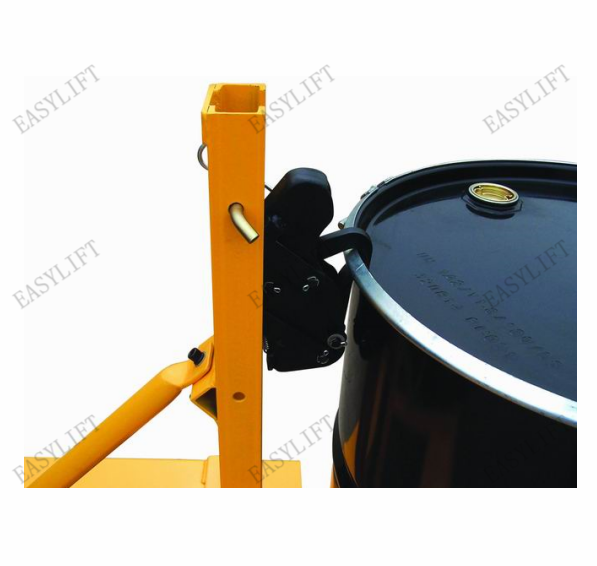

Single Eagle-Grip head, to handle drums in different diameters (with straight wall and top rings).

With a 3M-lift forklift truck,the attachment can do two stacks of drums on trucks from the floor.

With a free-mast lift truck, the attachment can do two stacks of drums in ISO containers. (One stage-mast forklift can do just one stack only.)

Key Notes: Tilting the carriage of the forklift forward and back is very important to operate the drum handler.

In order to pick up drums, just tilt the carriage of the lift-truck slightly forward, so that the clamping heads can make contact on the drums.

After the drums are picked up, the drums can then be tilted back in straight position,for transport.

In order to release the drums, the operator should again tilt the carriage of the lift-truck slightly forward.
